Which load applies to my glazing scenario?

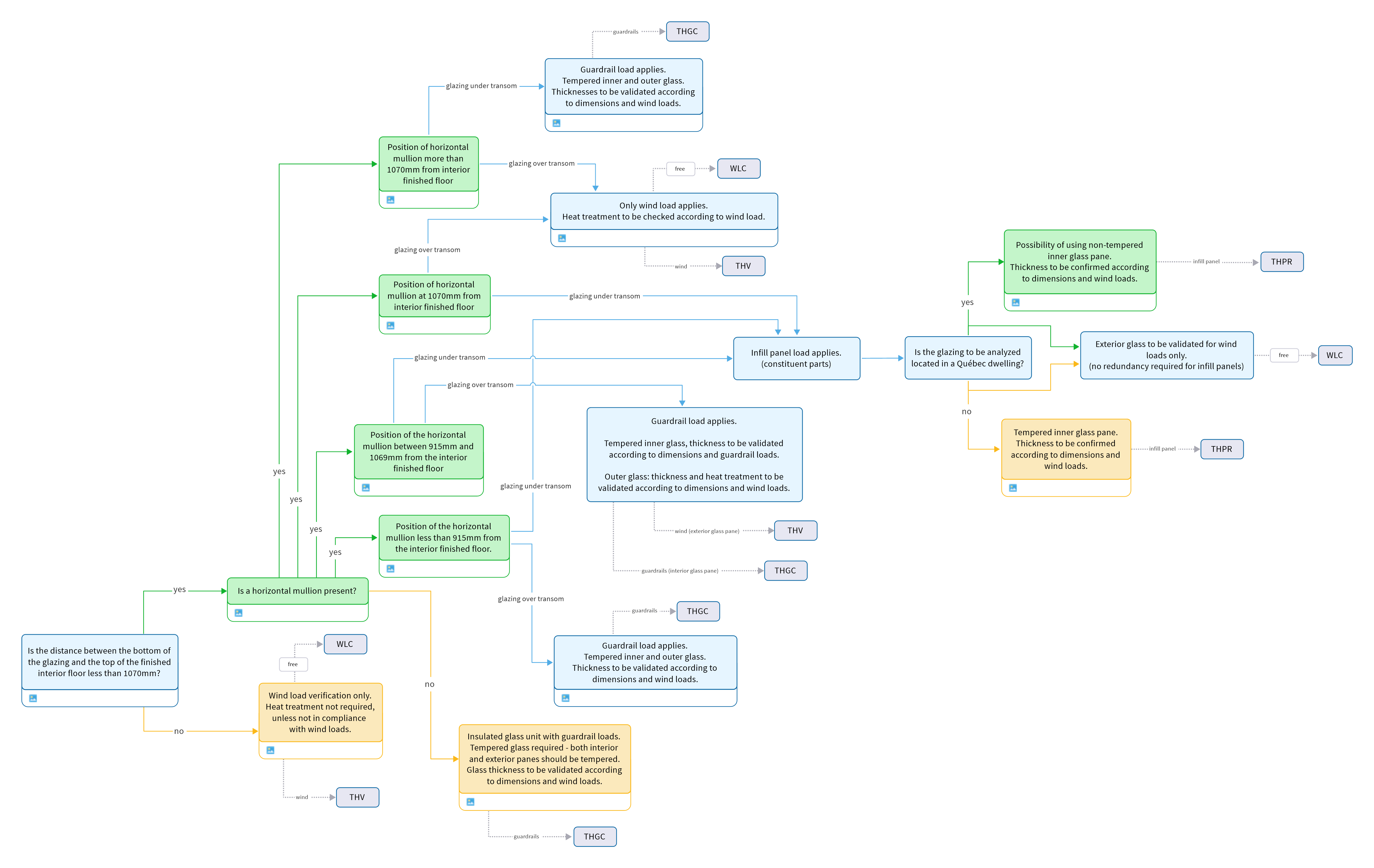

Please click on the image to download the complete interactive flowchart.

⚠ Legal disclaimer: this document is intended to be used for preliminary verifications only. Any information pulled or inferred from this diagram should be analyzed and certified by a professional engineer. The professional engineer must double check the results by calculation and/or simulation (such as finite element analysis). Les Solutions de Verre et Mur-rideau Inc. (LSVM), its employees, directors, administrators and collaborators cannot be held responsible for the consequences resulting from the use of this diagram.

⚠ Important information:

Considering the reference to Part 9 for dwellings in Quebec via article 3.3.4.7.1);

Considering also the presence of article 9.8.8.7, which mentions that the glass panels of guardrails must be made of safety glass (tempered or laminated);

And since the distinction between walls acting as guardrails and guardrails (balustrades) is currently not entirely clear;

We believe that the use of non-tempered glass in windows acting as guardrails should be avoided, at least for glass portions whose threshold is below the required guardrail height, pending the new version of the CAN/CGSB-12.20 standard, which will clarify this aspect.

Hence the temporary revision of our load application diagram below.
